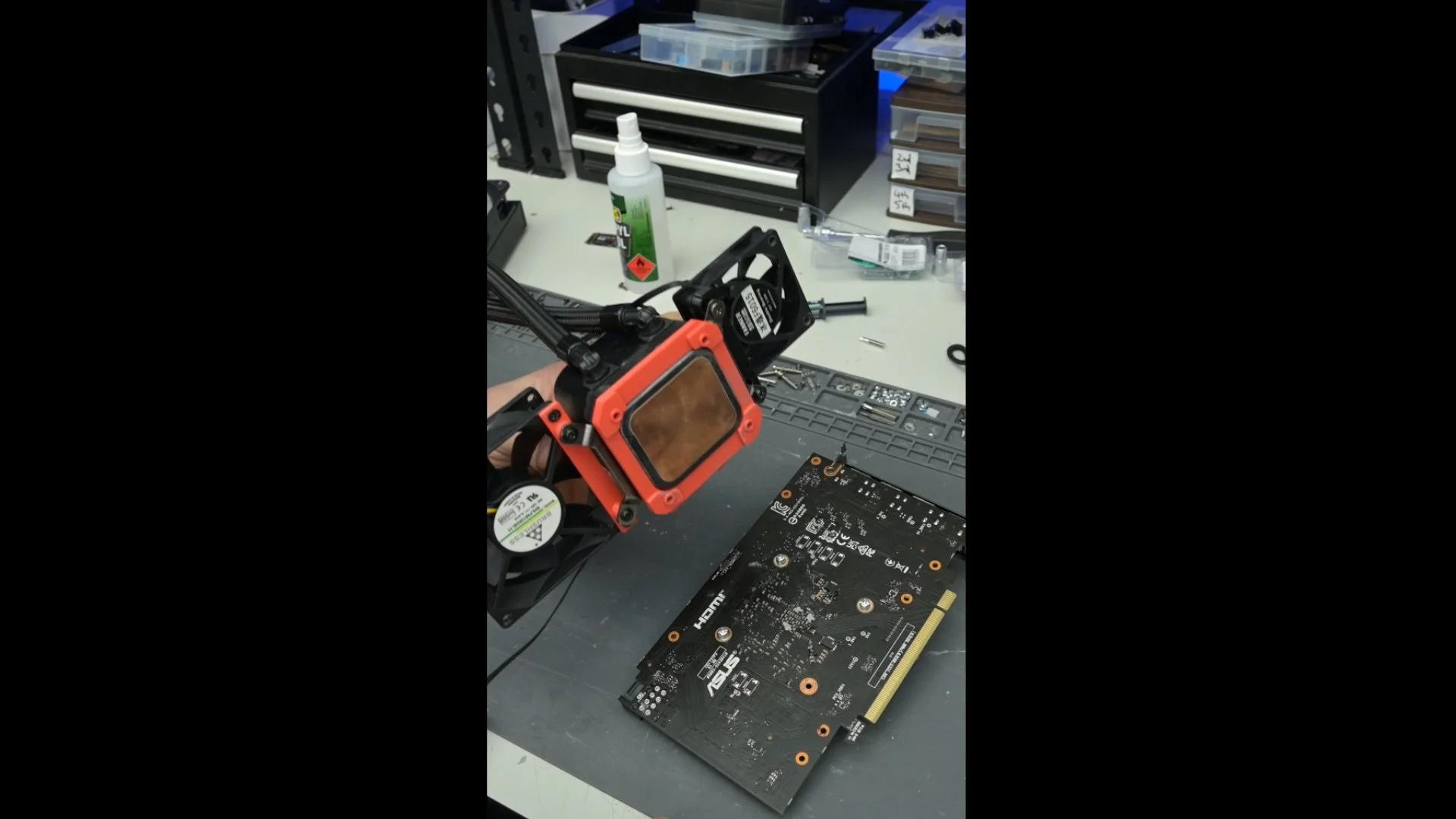

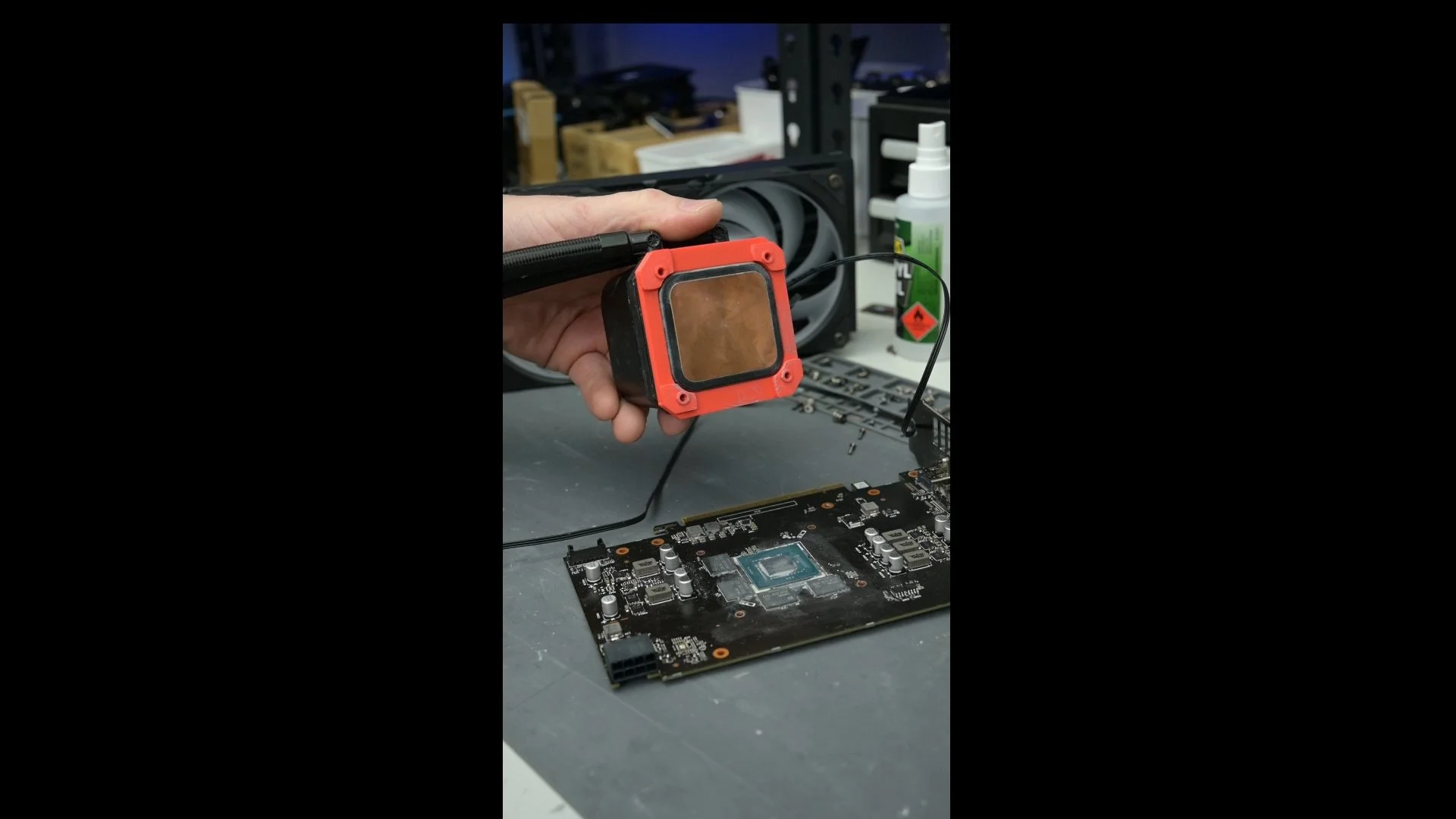

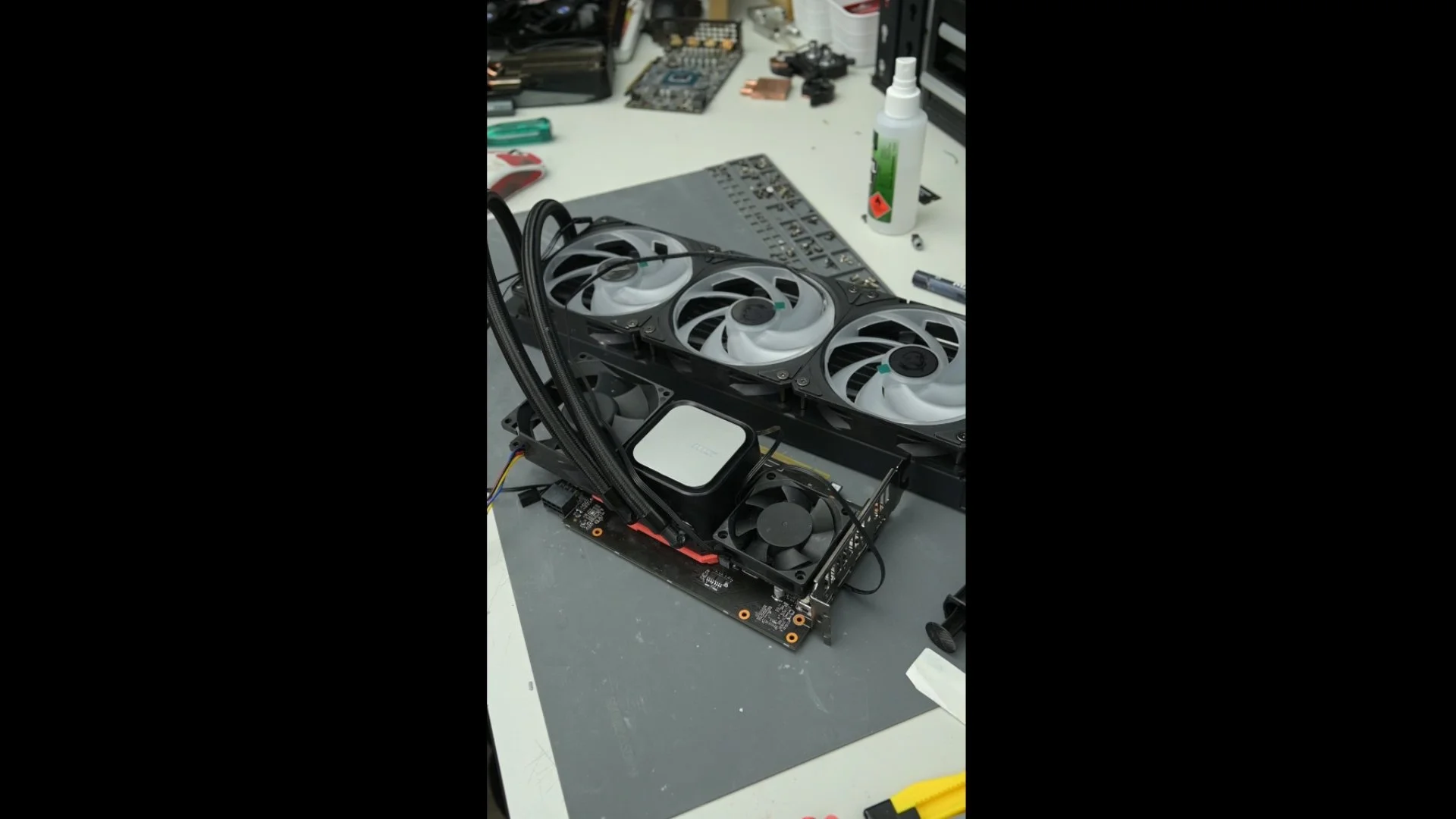

This is the custom GPU AIO mount I built for the ASUS ProArt RTX 4060, designed to get a proper AIO onto the card without zip ties and bad decisions. It is designed specifically for the MSI CoreLiquid A13.
It is guaranteed to fit the ASUS ProArt RTX 4060 it was designed for. It may also fit other cards, but only if they match the following dimensions:
Guaranteed to fit the ASUS ProArt RTX 4060
May also fit other cards with:
~54 mm × 54 mm mounting hole spacing
~1.9 mm Z height (top of die to PCB)
Designed for MSI CoreLiquid A13 only
Printed in ASA
Rated for 100°C heat
Includes fan mounts for 60 mm and 90 mm fans
Fans not supplied
This is the printed mount and fan brackets only. Nuts and bolts are supplied with the kit.
Instruction manual
Shipping price is rough, so I’ve kept the mount itself as cheap as possible.
